BENDING
HART is thrilled to offer Schiavi America bending machines for all your metal bending needs. Schiavi America offer some of the finest press brakes in the world. The extensive portfolio includes machines for die bending as well as large format bending machines and fully automated solutions. There is a wide range of options available for each bending technology to suit your specific application, just consult with your sales rep.
Schiavi America machines can produce simple and complex parts in any format precisely and cost-effectively. You always benefit from high-quality parts, increased flexibility, innovative tools, sophisticated automation solutions and intelligent software all from a single source.
Manual Die Bending

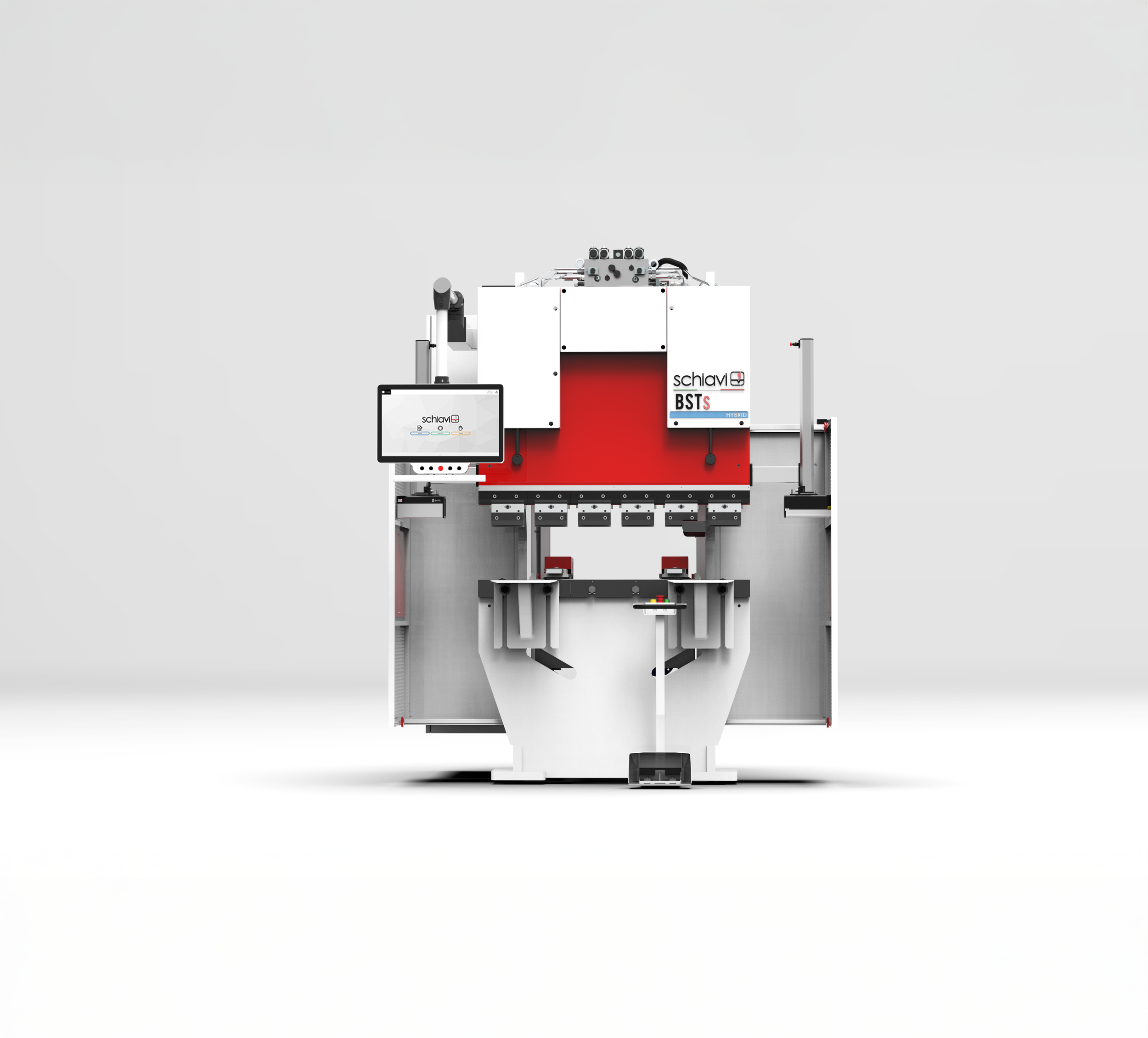

BSTs
The BSTs range guarantees safety and flexibility in a competitive package. The range has been designed for simple and fast bending but also offers the accuracy and constancy synonymous with the Schiavi name.
Equipped with rear mechanics (X-R) and a dedicated Task SK12 CNC, the models range from 500 kN – 1.2 metres to 1250 kN – 4 metres.
Fast Tool Change
For complete clamping tool flexibility, choose between different system options.
Convincing design
Due to the closed frame, you can use the entire bending length without restrictions
Well positioned
The backgauge positions blanks precisely. You can select a 2, 4, or 5 axis backgauge.
Perfect angle
With the ACB Laser angle measuring system, even the first part is a success.
TruBend Series 5000
The TruBend Series 5000 TRUMPF's most successful bending machine worldwide. This means from programming, to setup, to bending, production productivity will be unmatched. Innovative features such as the lower tool displacement and the 6-axis backgauge provide you with complete production freedom.
The operator's work is made easier by numerous innovations such as the control concept, which is a revolution in its simplicity and intuitive use, as well as new solutions in the field of ergonomics, such as the MagicShoe.
Quiet and fast
The On-Demand Servo Drive operates quickly, quietly, and in an energy-efficient way.
Automatic tool change
The automatic tool changer, ToolMaster, takes over all tool setup operations.
Flexibility due to 6-axis backgauge
The 6-axis backgauge provides you with complete freedom in use.
Angle measuring systems
With angle measuring systems from the Automatically Controlled Bending family, even the first part is a success.
User-friendly and ergonomic
Numerous equipment options make production more enjoyable, safer, and more productive.
Simple control
With the Touchpoint TruBend, operation is as easy and intuitive as with a tablet PC.
TruBend Series 7000
The TruBend Series 7000 is a prime example of man and machine working in perfect harmony. The ergonomic high-speed machine bends small and medium-sized parts under the best working conditions, saving space for every production system.
In addition to the high level of ergonomics and user-friendliness, due to the direct drive and our automatic angle measuring system, you achieve a high output at a very high level of quality. Operation sitting down or standing up is comfortable for the operator, and due to BendGuard Automatic, the setup operation is also extremely fast and safe.
High output with top quality
With our high-speed machines, you can bend small and medium-sized parts ergonomically and highly productively whilst saving space.
Reliable and quick
Work both safely and quickly as the BendGuard Automatic moves independently to the height of the set-up tools due to the CNC control system.
Sophisticated space saver
With its small installation area, the compact TruBend Series 7000 will fit in any production system, and can even be transported by forklift truck.
Easy to operate
The operator can work ergonomically with a standing and sitting aid. They can also adjust the support table individually.
Automated Die Bending
TruBend Cell 5000
Easy programming, fast automated bending: The TruBend Cell 5000 is the perfect solution for all those who value productive and flexible automation, for the widest possible range of parts. The quality remains consistently high.
With the newest series of the bending machine TruBend 5000, the bending cell is state of the art, for example in the areas of programming and angle measurement. Select the bending machine and BendMaster according to your individual range of components. You also have maximum freedom in the design of the material flow using conveyor belts and pallet conveyors.
Perfectly Programmed
You will love the programming system TecZone Bend – it is extremely fast and easy to use.
Saves time
The automatic gripper change means you always have the right gripper
Simple setup changes
The ToolMaster can change the tool automatically for every new program in just a few seconds.
Wide range of components
Process small and large parts weighing up to 220 lbs. with the gripper and vacuum gripping technology
Precise angles
First part, perfect part – thanks to ACB Laser and ACB Wireless
Twice as good
BendMaster 60 and BendMaster 150: The right automation solution for every range of parts
TruBend Cell 7000
The TruBend Cell 7000 offers users a compact system for the highly dynamic, efficient bending of small parts.
Quicker production
Backgauges and a dynamic drive concept make the TruBend Cell 7000 the world's fastest small-part bending cell.
Effortless tool change
The ToolMaster Bend sets up automatically.
Optimized material flow
The LoadMaster Bend loads quickly, reliably, and parallel to production.
A small part specialist
Now you can produce small parts up to 20x15 inches even more efficiently.
Automatic production
The conveyor system gives you flexible storage options for your finished parts.
Precise angles
First part, perfect part – with ACB.
